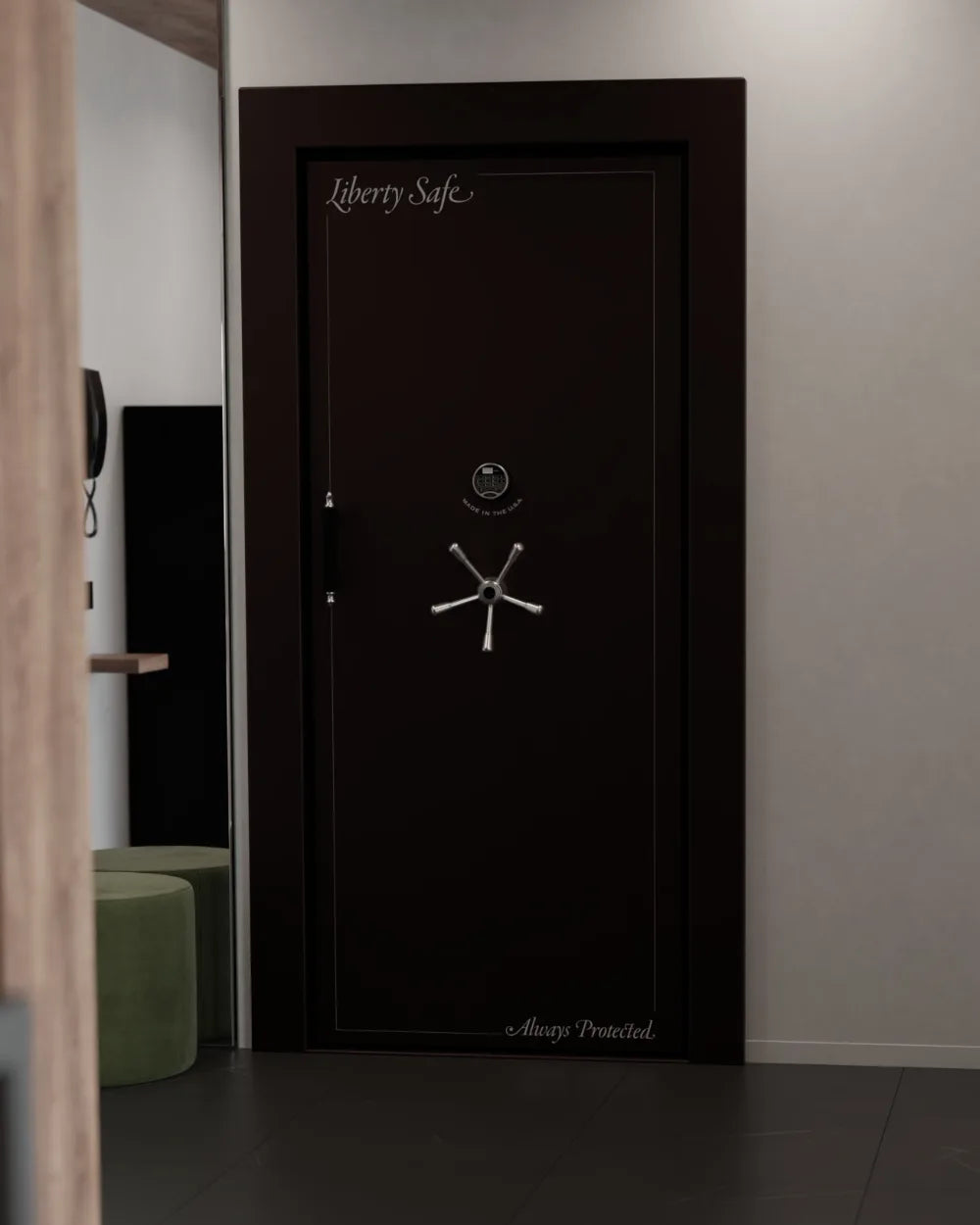

A vault door is not a heavy safe door. It is an independent security door that only performs at its rated level when it is set into a reinforced room.
We have installed vault doors across Sacramento, the Bay Area, and Northern California for over 31 years. The spec details that actually matter are different from what most product pages emphasize.
Start with the direct answer, then read through the mechanical details at whatever depth your project planning requires.
A safe has six sides. The manufacturer controls all of them. A vault door has one side that the manufacturer controls, and five sides that the room construction controls. The floor, ceiling, and three walls of the vault room are what the door locks into. The protection the door provides depends entirely on what it is locking into.
This is the distinction that separates a vault door evaluation from a safe evaluation. You are not just buying a door. You are specifying a component of a system, and the quality of that system depends on whether the room behind the door matches the door’s rated protection level. A well-specified vault door in an unrated room is a well-specified door in an unrated room. That is not vault-level protection.
The door itself is a heavy steel door with a multi-bolt perimeter locking system, a hardened lock package, and internal hinges designed to carry loads that most residential doors never see. It is a serious piece of engineering. But it earns its rating only when it is set into a room that matches it.
Here is how the door actually works mechanically.
A vault door spec sheet often emphasizes the most visible numbers: door weight, bolt count, and steel thickness. Those numbers matter. But the components below are where quality separates from marketing copy, and they are the things most buyers do not think to ask about.
Active bolts on the lock side retract when you operate the handle. Quality vault doors also include dead bolts on the hinge side that do not retract. Hinge-side dead bolts defeat hinge-removal attacks. If the door has no hinge-side dead bolts, removing the hinges can swing the door open from the wrong side. The bolt count that matters. Look for bolts on all four sides, not just the lock side. Four 1-inch bolts on all four perimeter sides are meaningfully more secure than twelve 1/2-inch bolts concentrated on one side.
Vault door hinges are structural and load-bearing. The door weighs 300 to 2,000 lbs, depending on tier, and the hinges carry that load continuously while providing smooth operation and resisting attack. Internal hinges, which are enclosed within the door and frame, are more attack-resistant than external hinges. A vault door whose hinges bind or are difficult to operate under load is signaling a hinge design or installation problem.
Vault door locks follow the same UL standards as safe locks: UL 768 for mechanical combination locks and UL 2058 for electronic locks. What distinguishes vault door lock packages from safe locks is the available surface area: vault doors can accommodate more hardplate, more relocker geometry, and dual-lock configurations (two separate locks, both required to open) that are impractical in safe doors. Cheap vault doors use the same lock package as a residential safe and waste the available protection.
The bottom of the door frame. A proper threshold seal prevents tool insertion under the door and contributes to fire protection if the door has a fire seal. An improper or poorly fitted threshold is a common attack point on lower-quality vault doors, and it is almost never mentioned in product marketing.
Marketing for vault doors often leads with bolt count. Fourteen bolts sound better than six. But the failure mode is the steel yielding around the bolts, not the bolts shearing. Six 1-inch bolts in a 1/4-inch plate are meaningfully stronger than fourteen 1/2-inch bolts in 12-gauge sheet steel. Bolt count only becomes a real differentiator when the steel and frame are already thick enough that the bolts themselves are the limiting factor. Ask about bolt diameter and steel thickness alongside bolt count.
The mechanical quality of the door is one-half of the equation. The other half is what it is set into.
A vault door installed in a standard stud-and-drywall wall gives you a vault-rated door in an unrated wall. A motivated attacker bypasses the door entirely and cuts through the wall. The door specification you paid for provides no protection against an attack on the wall.
The honest spec for a vault door installation is not the door’s rating. It is the lower of the door rating and the wall rating. Getting full value from a vault door means specifying wall construction that matches or exceeds the door.
Reinforced CMU block (fully grouted with rebar) or poured concrete at 6 inches minimum. Existing concrete basement walls often qualify for assessment.
Poured concrete at 8 to 10 inches with reinforcing steel. Reinforced CMU with full grout is also acceptable with a structural assessment.
Poured concrete at 10 to 12 inches with substantial reinforcing steel. Engineered vault construction required for TL-30 and above.
These are guidance levels, not formal certifications. Most residential vault rooms are not separately rated. Your structural engineer and installer confirm the match for your specific project.
The Reinforced Room the Vault Door RequiresWith the mechanics and the wall requirement understood, the practical question is what the product tiers actually look like.
Vault doors range from entry-level gun room doors to bank-grade commercial installations. The tier determines the door steel, the boltwork specification, the lock package, and the wall construction required to match it.
Door construction: Typically 3/8-inch to 1/2-inch door slab. 3 to 5 active bolts on the lock side. May or may not include hinge-side dead bolts, check the spec.
Lock spec: Standard UL 768 Group 2 mechanical or UL 2058 electronic. Basic lock protection.
Best for: Sacramento foothills gun rooms and collection spaces where the primary requirement is controlled access and basic deterrence. Requires existing concrete or reinforced CMU walls to provide meaningful security.
Door construction: 1/4-inch to 3/8-inch plate steel slab with composite construction on many models. 4 to 6 active bolts plus hinge-side dead bolts. Improved perimeter coverage.
Lock spec: UL 768 Group 1 mechanical or quality UL 2058 electronic with hardplate and relocker protection.
Best for: The most common tier for serious NorCal residential applications. Suitable for firearms collections, jewelry, and precious metals. Bay Area estate entry-level vault rooms. Requires poured concrete or well-reinforced CMU walls.
Door construction: Heavy-gauge steel slab, typically 1/4-inch to 1/2-inch plate with composite construction. Full perimeter boltwork with 6 to 8 bolts on all four sides. Internal hinges standard.
Lock spec: UL 768 Group 1 mechanical with full hardplate and multiple relockers, or dual-lock configuration with mechanical and electronic. Time-delay and duress code support standard on most models.
Best for: Bay Area estate vault rooms protecting investment-grade assets. High-net-worth residential applications where the door specification must match the asset value. Requires engineered poured concrete wall construction.
Door construction: Heavy plate or composite construction engineered to UL 687 or higher. Full perimeter boltwork with large-diameter bolts. Engineered frame integration. Some models are TRTL-rated.
Lock spec: Dual UL-listed locks, time-delay required, duress code required. Full hardplate package. Day-gate option available on most commercial models.
Best for: Commercial vault rooms, precious metals dealers, fine jewelry operations, high-value commercial applications. Requires specialist vault construction for matching wall spec. Residential use is rare.
Knowing the product tiers, the next question for most buyers is what actually getting one installed looks like.
A vault door is an independent security door designed to seal an entire room rather than a freestanding cabinet. Unlike a safe, which has six sides the manufacturer controls, a vault door secures only one side of the room. The remaining five sides, floor, ceiling, and walls, are the buyer’s construction responsibility. The protection level of the installation is the lower of the door rating and the wall construction rating. A vault door in an unrated wall provides almost no meaningful security.
Four components determine vault door security: the boltwork (number, diameter, and perimeter distribution of locking bolts, including hinge-side dead bolts that resist hinge attacks), the hinges (internal, load-bearing, and attack-resistant), the lock package (UL-rated lock with hardplate and relocker protection), and the threshold seal (preventing tool insertion under the door). Bolt count in isolation is a poor predictor of security. Bolt distribution, bolt diameter, and steel thickness together determine the door’s actual resistance.
UL Class M is the residential vault door standard under UL 1037, adapted for larger door geometry. It tests the door’s resistance to forced entry using common attack methods: prying, drilling, and tool attacks on the boltwork and lock. The rating certifies the door’s resistance to these attacks for a specified duration. It does not certify the surrounding wall construction. A UL Class M vault door must be installed in construction that matches or exceeds the door’s tested resistance to provide the rated protection.
Installing a vault door in a standard stud-and-drywall wall provides almost no meaningful security. The wall can be breached faster than the rated door, rendering the door rating irrelevant. A vault door requires wall construction that matches its rating. Entry-level gun room doors require a minimum reinforced CMU or 6-inch poured concrete. Mid-tier residential vault doors require 8- to 10-inch poured concrete. TL-rated vault doors require engineered vault construction.
Vault door weight ranges from about 300 pounds for entry-level gun room doors to over 2,000 pounds for premium residential and commercial models. Weight reflects steel and composite material thickness, not security directly. Heavier doors require more substantial hinge systems and often require mechanical assistance or rigging equipment during installation. The weight of the door is a useful spec point for planning the structural opening and installation logistics, but it is not a direct measure of protection.
A hinge-side dead bolt is a fixed, non-retracting bolt on the hinge side of the door that engages the frame when the door closes. Its purpose is to prevent hinge-removal attacks: if an attacker cuts or removes the exterior hinges, the hinge-side dead bolts hold the door in the frame from the other side. Vault doors without hinge-side dead bolts can be defeated by removing the hinges and swinging the door open from the wrong side. This detail rarely appears in marketing materials but consistently distinguishes quality vault doors from cheaper ones.
Describe your space, your assets, and your protection goals. We will give you a direct product assessment, including which door tier and wall spec actually fit your situation.
