Every fire safe has a gap between the door and the body, the one direct path for superheated gases to bypass all that wall insulation. The seal is what closes it, and it's the part most likely to fail first.
How an intumescent seal works, the four ways it fails, and what to inspect on a safe you already own.
Start with why the gap matters. Then the activation sequence, and the four failure modes.
Every fire safe has a gap between the door and the body. That gap is the only direct convective path from the external fire environment to the interior. Without something to close it, superheated gases bypass all the wall insulation and heat the interior directly. The intumescent seal is the element designed to close that gap, and it is the element most likely to fail first in a sustained wildfire event.
It's not complicated, but it's rarely described clearly. Here's the sequence.
From a thin cold strip to a stable char that holds the gap closed, four stages.

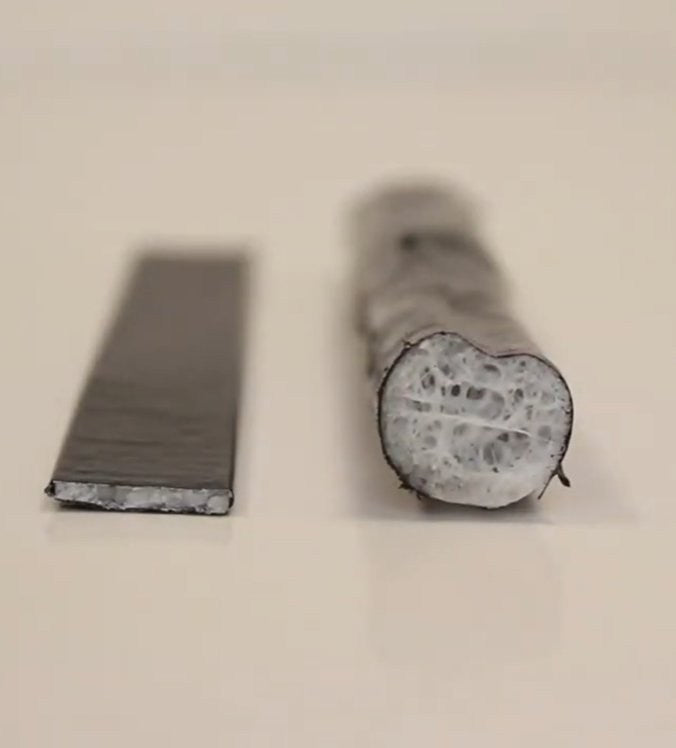

The seal sits as a relatively thin strip along the door perimeter, inert, doing nothing until heat arrives.
When the door edge reaches about 200°F, well before peak fire temperatures and before the interior has heated much, a chemical reaction releases gas within the material and it begins to react.
The material expands rapidly to 7 to 10 times its installed thickness, filling the gap between door and frame on all four sides and blocking the convective bypass path.
A quality seal forms a stable char that holds its shape through peak temperatures of 1,200°F or more, keeping the gap closed for the duration of the event.
Most buyers have never seen these listed explicitly. If you own a safe, this is what degradation looks like.
Lower-quality materials expand at 200°F but crumble as temperatures reach 800–1,000°F, reopening the gap during the fire. Especially consequential in wildfires, where sustained temperatures exceed standard test conditions.
Some safes install the seal on three sides, leaving the hinge side unsealed. Heat finds the unsealed path, a three-sided seal leaves a convective bypass open.
Every time the door opens and closes, the seal compresses and releases. Over years, the material can take a permanent set and lose expansion capacity. This failure develops gradually and invisibly.
Steel expands as it heats. If boltwork engages only one side of the door, unbolted edges can bow outward, widening the gap beyond what the seal can bridge. This is why three-way and four-way boltwork matters for fire, not just burglary.
How the door-seal failure timeline connects to duration adequacy in NorCal wildfires.
Is 30 Minutes Enough? →The door seal closes the gap between the door and the frame when a fire arrives, blocking the direct convective path that bypasses the insulated walls. An intumescent seal activates at approximately 200°F, expanding to 7 to 10 times its installed thickness to fill the gap and prevent superheated gases from entering the interior directly.
An intumescent seal is an engineered strip that expands dramatically when heated to its activation temperature. The expansion is driven by a controlled chemical reaction releasing gas within the material structure, producing a stable foam-like char that holds its expanded shape at high temperatures. Quality seals maintain expansion through peak fire temperatures.
Palusol is a specific intumescent material manufactured by BASF, widely used in fire-rated safes. When a manufacturer specifies Palusol by name rather than "expanding seal," it signals they are using a documented, verifiable material. It is a positive quality indicator because it means the manufacturer is willing to be held to a defined standard.
Yes. Intumescent seals can develop compression set over years of door operation, losing some expansion capacity. The material can also degrade from physical damage or environmental exposure. Periodic visual inspection is reasonable for any fire-rated safe that has been in service for several years.
As a safe heats, steel expands at different rates on the door and body. Without boltwork holding the door against the body on multiple sides, the door can bow outward at unbolted edges, widening the gap the seal is trying to close. Three-way and four-way boltwork counteracts thermal distortion and maintains seal contact throughout the fire event.
The seal mechanism and material are documented by the manufacturer; the safe-specific failure modes come from field experience. Sources below.
Intumescent fire-seal product documentation (sodium-silicate seals for doors and cabinets). Intumescent fire-seal spec
BASF, Palusol product information (basf.com). Palusol is a registered trademark.
Intumescent seal manufacturer guidance on gap tolerance and door fit; Norcal Safe and Vault installation experience. Dealer-reported.
Norcal Safe and Vault field and installation experience; UL 72 fire-rating context. Dealer-reported.
This is general educational information about how fire-safe door seals work, not a substitute for the manufacturer's specifications for your specific safe or a professional inspection. Seal materials and ratings vary by model.
