Safe marketing competes on bolt count. The engineering reality is that bolt count without bolt diameter, engagement depth, and steel thickness at the receiver points tells you almost nothing useful. Here's the door construction system that actually determines what a crowbar can do to your safe.
Thirty years of selling more Liberty safes than any other dealer in Northern California means we have compared more door construction specs across more models than most buyers will ever see. The bolt-count marketing pattern is consistent across the industry. So is the construction quality gap it masks.
Bolt count is the spec that gets advertised. It is not the spec that determines how well a safe door resists a crowbar. Bolt count is one variable in a system, and in that system, bolt diameter, bolt engagement depth, and the steel thickness around the bolt holes all outweigh bolt count in determining what a pry attack can do.
A safe with twelve 1/2-inch bolts extending 1/2 inch into 14-gauge steel is less pry-resistant than a safe with four 1-inch bolts extending 1 full inch into 7-gauge steel. The second safe has one-third the bolt count. It is harder to pry open, not easier.
Understanding why requires looking at the system, specifically, what happens to a bolt and the steel around it when a crowbar is working against the door seam.
A pry attack starts at the door seam, the gap between the door edge and the door frame. The attacker inserts a pry bar into that gap and applies lever force. What happens next is determined by three sequential factors.
The narrower the door seam, the less purchase the pry bar can get. A bar inserted 1/4 inch into a tight seam has almost no lever arm. A bar inserted 2 inches into a loose-fitting door has enough moment to generate significant prying force with minimal effort. Run your finger along the door edge when it is closed — consistent, tight tolerances along the full perimeter indicate a well-made door.
Once the pry bar is applying force, the door and frame are being bent away from each other. The first point of failure is almost always the bolt engagement zone, where the bolt extends into the receiver hole. Thin steel at this point deforms under moderate force and allows the bolt to pull through. Thick steel requires dramatically more force before the engagement fails.
A bolt under a prying force is being asked to resist shear. The thicker the bolt and the deeper it extends into the receiver hole, the more force is required to shear or pull it through. A 1-inch bolt with 1-inch engagement provides four times the cross-sectional area and twice the engagement depth of a 1/2-inch bolt with 1/2-inch engagement — the shear resistance is substantially higher at each bolt, regardless of how many bolts there are.
Across more than 100,000 Northern California installations, the doors we see compromised in field reports are almost always defeated at the bolt engagement zone, not through the bolt itself being cut, but through the steel around the bolt hole deforming under prying force. Thicker steel at that specific zone is the variable that makes the difference. Bolt count is how manufacturers advertise. Steel thickness at the engagement point is what we check.
The Norcal team checks bolt diameter and engagement depth first when comparing two safes at the same price point. The door failures we see are almost always at the engagement zone, not through the bolt body itself.
When a product listing gives you a bolt count and nothing else, you have one data point in a four-variable system. Here are the variables that complete the picture and where to find them.
Determines shear resistance at each individual bolt. A larger diameter bolt has more cross-sectional material to resist the prying force trying to shear or bend it. CA DOJ minimum is 1/2 inch. Quality residential safes run 1 inch or larger at the primary bolts.
Listed in technical spec sheets as bolt diameter or locking bolt thickness. If the product listing only lists count and not diameter, ask the dealer or request the full spec sheet. If neither is available, treat it as minimum-tier.
Determines how far the bolt extends into the door frame receiver hole. Longer throw means more bolt surface is in contact with the door frame steel. The bolt cannot be pulled back under prying force until the steel around the receiver hole deforms enough to let it through. Deeper engagement requires more deformation, which requires more force.
Often listed as "bolt throw" in specs. Standard residential is 1/2 to 3/4 inch. Premium construction runs 1 inch or more. Manufacturer spec sheets are the source — marketing sheets rarely lead with throw depth because it is less memorable than bolt count.
Determines how much deformation force is required before the bolt engagement zone fails. Steel gauge runs counterintuitively: a lower number is thicker. 12-gauge is thicker than 14-gauge; 7-gauge is thicker than 12-gauge. The thickness at the bolt receiver points specifically determines deformation resistance.
Listed as body steel gauge or door steel gauge. The engagement zone thickness may be specified separately as door plate thickness in some premium products. Below 12-gauge body steel is standard residential; 10-gauge or better indicates elevated construction quality.
Determines how much lever arm an attacker can generate before the bolts are even under load. Tight, consistent seam tolerances reduce the purchase for the pry bar. Anti-pry tabs — hardened steel tabs or lips on the door edge — prevent the pry bar from getting into the gap at all in hardened areas.
Seam tolerance: inspect in person. Run your fingers along the full door perimeter when closed; it should be consistently tight. Anti-pry tabs: listed in spec sheets as "anti-pry tabs," "dead bolts on hinge side," or "pry-resistant door lip." Absence of anti-pry tabs is common at standard residential price points.
Here is the bolt-count inversion made concrete. Both safes are fictional, but the construction parameters are realistic for their respective price points in the residential market.
Safe A wins despite having one-third the bolt count. Safe B has more bolts than most buyers would think to question. The marketing presents them as equivalent or with Safe B as a better value because of the higher bolt count. The engineering says otherwise.
This is not a theoretical edge case. The pattern, high bolt count, thin steel, shallow engagement, loose tolerances, is common at entry-level and some mid-range price points. Marketing has trained buyers to count bolts because it is a number consumers can compare without any technical knowledge. The construction spec sheet tells a different story.
Any product listing that leads with bolt count and does not disclose bolt diameter, bolt engagement depth, or door steel gauge has told you the one variable that correlates least directly with pry resistance. You need the other three. Here is how to get them.
Most manufacturers publish a separate spec sheet with more details than the marketing page. Search for the safe's model name plus "spec sheet" or click the "Specifications" tab on the product page. Look for bolt diameter, bolt throw, and body steel gauge.
Some manufacturers use thicker steel on the door face and thinner steel on the body sides and back. If only one gauge is listed, ask specifically whether that applies to the door.
Inspect the door edge when the safe is closed. A tight, consistent gap along the full perimeter is a quality indicator you can verify without any technical knowledge.
Evaluating a specific model?
Bring the model name and we'll pull the full door construction spec, bolt diameter, throw, and steel gauge.
Bolt-work defends against pry attacks, the lever force that tries to separate the door from the frame by shearing or pulling the bolts through their engagement points. Relockers defend against drill attacks, the approach that bypasses the bolts entirely by defeating the primary lock. The two defense layers are aimed at two different attack methods.
A safe that is strong on bolt-work but weak on relockers has a predictable vulnerability to professional drilling attacks. A safe that is strong on relockers but weak on bolt-work has a predictable vulnerability to sustained pry attacks. The full construction picture requires both. If you have not reviewed the relocker architecture alongside this guide, it is worth doing before finalizing a comparison.
The companion passive defense element to door bolt-work, the system that activates specifically when a drill attack defeats the primary lock.

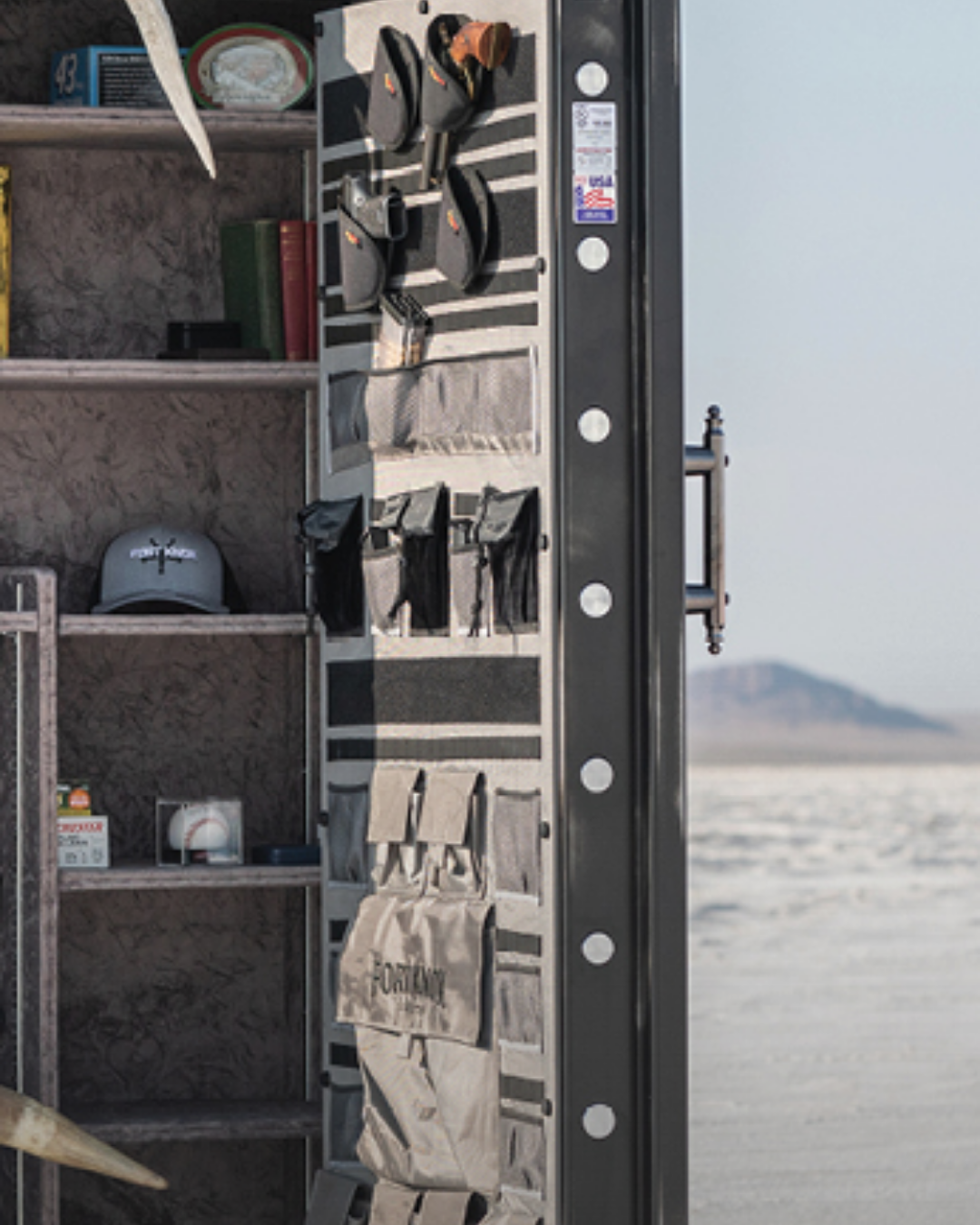

Read the GuideSafe bolt-work holds the door closed by extending locking bolts from the door edge into receiver holes in the door frame. A pry attack applies lever force to the door seam, trying to pull or shear those bolts out of the receiver holes. The resistance to that force depends on bolt diameter, how deep the bolt extends into the receiver (bolt throw or engagement depth), and how thick the steel is at the receiver points. These variables together, not bolt count alone, determine pry resistance.
Bolt count matters, but it is the least important of the bolt-work variables. Bolt diameter and bolt engagement depth determine the shear resistance at each bolt. Steel thickness at the receiver points determines how much force the frame can absorb before the engagement zone deforms. A safe with four large-diameter bolts at 1-inch engagement in 7-gauge steel is more pry-resistant than a safe with twelve small bolts at 1/2-inch engagement in 12-gauge steel.
Bolt engagement depth, also called bolt throw, is how far the locking bolt extends into the receiver hole in the door frame when the safe is locked. Greater depth means more bolt surface is in contact with the door frame steel, requiring more force to pull the bolt through under prying pressure. Standard residential bolt throw runs 1/2 to 3/4 inch. Premium construction typically runs 1 inch or more.
Steel gauge runs counterintuitively; a lower number is thicker. 7-gauge steel is thicker than 10-gauge; 10-gauge is thicker than 12-gauge; 12-gauge is thicker than 14-gauge. For the door specifically, 12-gauge or better provides adequate resistance for standard residential use. 10-gauge or better is preferred for elevated residential protection. The relevant measurement is the steel thickness at the bolt engagement zone, not necessarily the overall door thickness, because that is where prying force concentrates.
Anti-pry tabs are hardened steel tabs or lips on the door edge that prevent a pry bar from getting into the door seam at reinforced locations. When present, they force an attacker to find an unprotected section of the door perimeter before they can apply lever force. Anti-pry tabs are listed in technical spec sheets under names like "anti-pry tabs," "dead bolt hinge side," or "pry-resistant door lip." They are common on mid-range and premium residential safes, but not universal at entry-level price points.
